Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Mont Drive |
| Driven Type | Electric |
| Elevator Type | Passenger |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Power
1-3kw
Application
Passenger Elevator
Certification
CE Certified,ISO 9001:2008
Voltage
380V
Capacity
8 Person
Type
Elevators Traction Machine,Automatic
Warranty
5years,4 Year
Country of Origin
India
Brand - Mont Drive
Colour- Black and Yellow
Duty load
544kg
Encoder Warranty
3 year
Sheave Dia
320mm
Product Code
JDE 24P 08 SERIES
Port
by road, by sea and by air
Payment Terms
L/C, T/T, Other
Delivery Time
1 to 5 Days
Packaging Details
Wooden Box

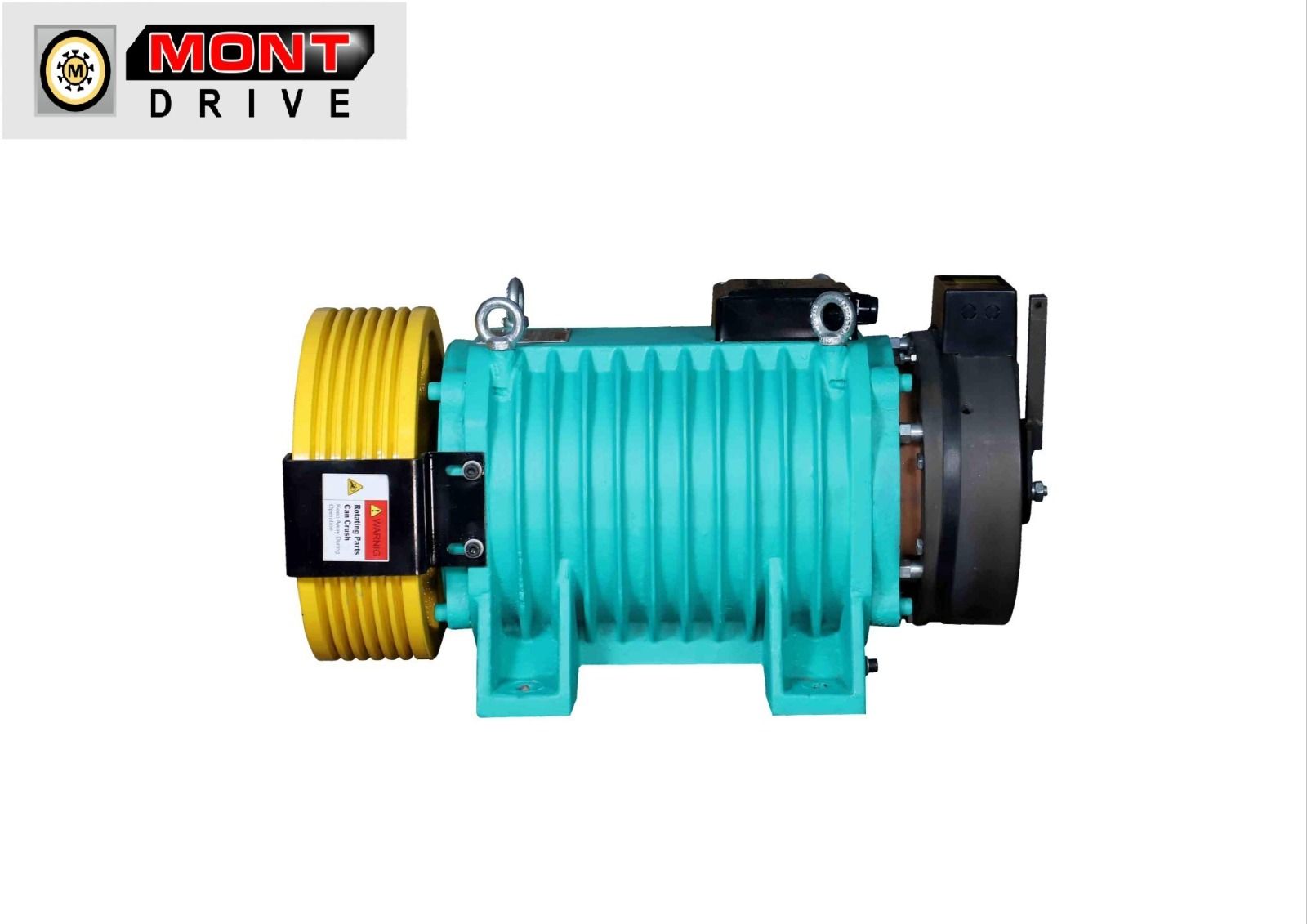

We are a Manufacturer of Passenger Elevator Motor. Our manufacturing unit is located in Mayapuri Industrial Area, Phase-2, New Delhi
Brand Name:- MONT DRIVE
Encoder:- HEIDENHAIN ERN 1387
Control Panel:- MONARCH
Pole:- 24 Poles
Warranty:- 4Years
Specifications
| Usage/Application | Lifts or Elevators |
| Power | 3.1 KW |
| Voltage | 380V Three Phase |
| Brand | Mont Drive |
| Country of Origin | Made in India |
| Encoder | Heidenhain (1387) / Innovance |
| sheave diameter | 320 mm |
| Capacity | 8 Passengers |
| IP Protection | IP 41 |
| Torque | 250 NM |
| Current | 9 Amp |
| No. of Poles | 24 |
| Frequency | 24 Hz |
