7 Lac / Piece( + 12% GST applicable)
| Business Type | Manufacturer, Exporter, Supplier |
| Certifications | ISO 9001:2008, CE Certified |
| Warranty | 2years |
| Phase | Three Phase |
| Click to view more | |
Product Details
Material
Iron
Type
Permanent Magnet Alternator, Low RPM
Country of Origin
India,Made In India
Brand Name
JD ENGINEERING WORKS
Condition
Used
Power
40Kw
Voltage
415,415V AC(Three-Phase)
Speed
300Rpm
Working Time
24/7
Magnet Used
Neodymium Magnets
Color
Blue
Efficiency
More then 90%
Port
by road, by sea and by air
Payment Terms
Other
Packaging Details
Wooden Packing

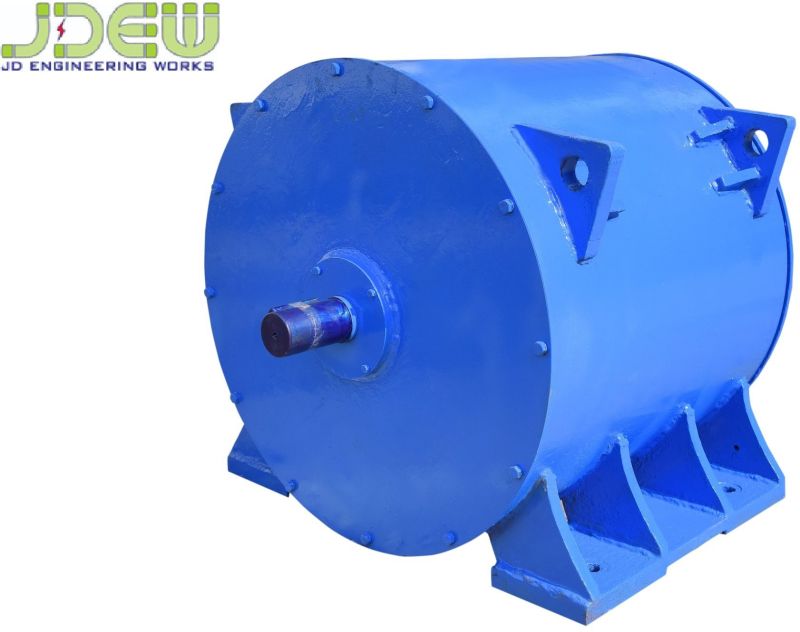

Permanent magnet generator is a device used to convert mechanical energy to electrical with highest efficiency. In conventional alternator the rotor is made of amination and the copper wire is wounded to rotor to generate magnetic field. On rotation the rotor cut the magnetic field, flux is cut and emf is induced to generate alternating current.
Specifications
| Power | 20KW |
| Voltage | 415VAC Three Phase |
| Usage/Application | Wind Turbine,Hydro Turbine,Coupled with Motor and Flywheel |
| Speed | 120RPM |
| Material | Cast Iron |
| Frequency | 50Hz |
| Product Code | PMG-120G-20 |
| Temperature | -30 degree Celcius to 80 degree Celcuis |
| Mounting | Radial Flux Foot Mounting |
| No. Of Poles | 50 |
| Current | 31 Ampere |
| Winding | 100% Copper |
| Ins Cl | H |
| Duty | S1 |
| I Deal In | New Only |
| Protection Class | IP54 |
| Country of Origin | Made in India |
| Brand Name | J. D. Engineering Works |
