Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | JD Engineering Work |
| Body Material | Cast iron |
| Driven Type | Wind |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Current Type
AC
Shape
Horizontal
Color
Grey, Green
Condition
New
Rated Power
5kw
Produce Power
1-5kw
Application
Wind turbine generator
Certification
ISO 9001:2008, CE Certified
Type
Wind Turbine,Cast Iron
Frequency
50 Hz
Country of Origin
India,India
Noise Level
Non Silent
Number of Phase
Triple Phase
Speed
500rpm
Warranty
24 month
Port
Logistics
Packaging Details
Wooden Packing

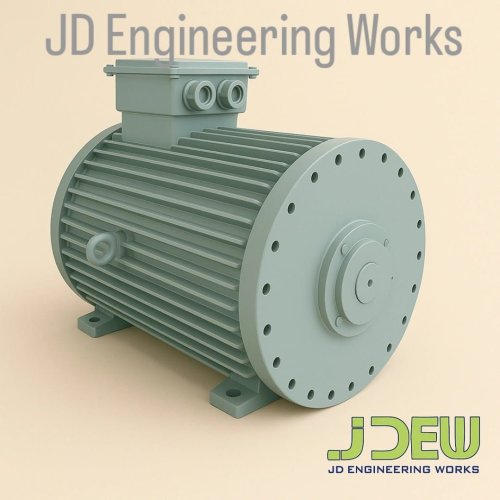

A permanent magnet generator is a device used to convert mechanical energy to electrical with the highest efficiency. In a conventional alternator, the rotor is made of amination and the copper wire is wound to the rotor to generate a magnetic field. On rotation the rotor cuts the magnetic field, flux is cut and emf is induced to generate alternating current.
Specifications
| Phase | Three Phase |
| Usage/Application | Wind Turbine, Hydro Turbine, Couple with Motor and flywheel |
| Speed | 300 |
| Power | 5 kW |
| Voltage | 415 V AC or As per request |
| I Deal In | New Only |
| Speed (Revolution Per Minute) | 0-300 |
| Mounting | Foot & vertical mounting |
| No. Of Poles | 20 |
| Current | AC Three Phase |
| Winding | 100% Copper |
| Country of Origin | Made in India |
| Frequency | 50 Hz |
| Insulation | H Class |
| Working Temperature | -40 to 80 Degree Celsius |
| Minimum Efficiency | Above 90% |
| Rated Torque | 152 NM |
| Duty | S1 |
| Shaft Material | EN8 |
| Protection | IP54 |
| Bearing Brand | SKF |
| Warranty | 24 Months |
